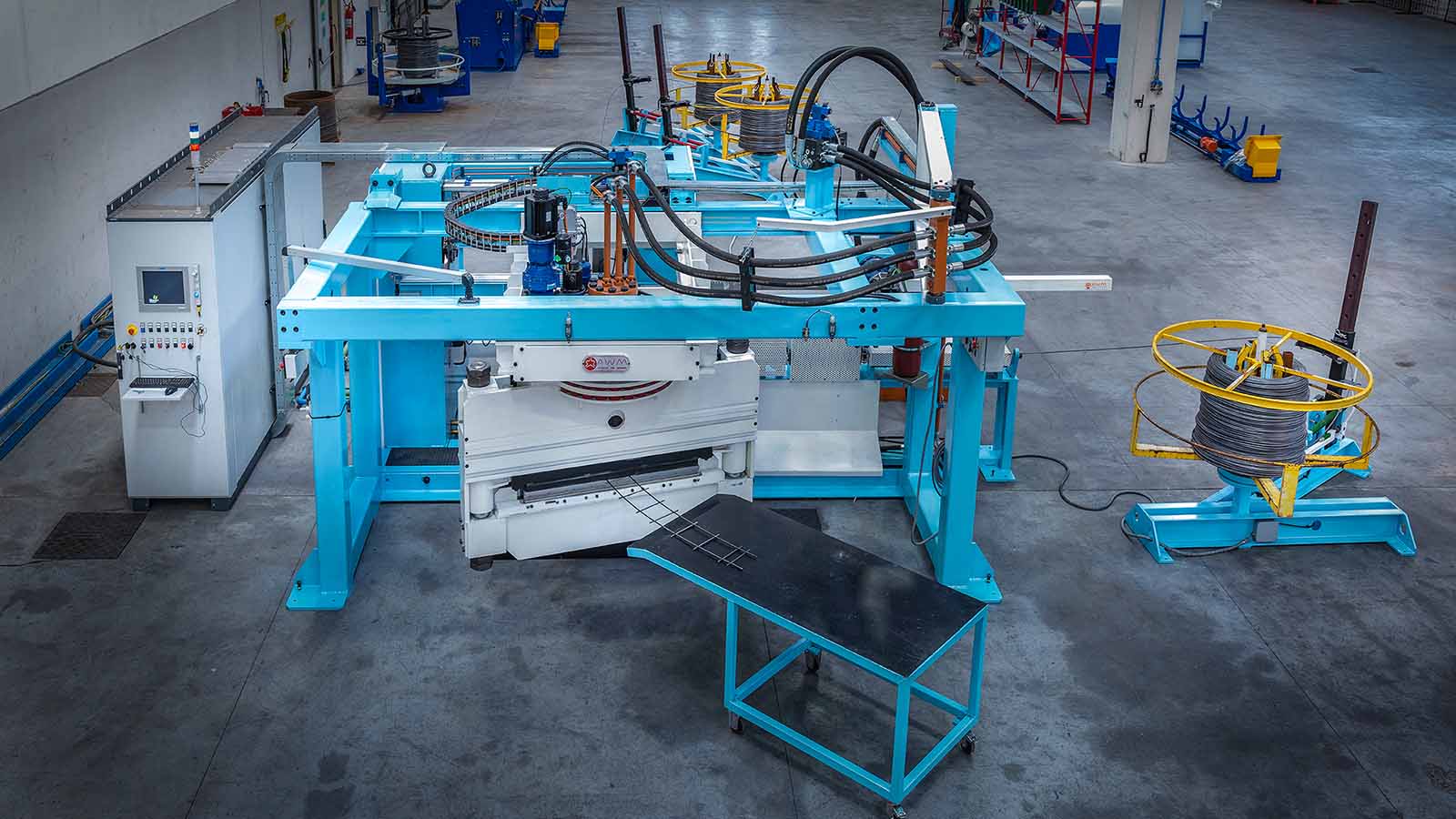

Ladder mesh welding machine
TNL

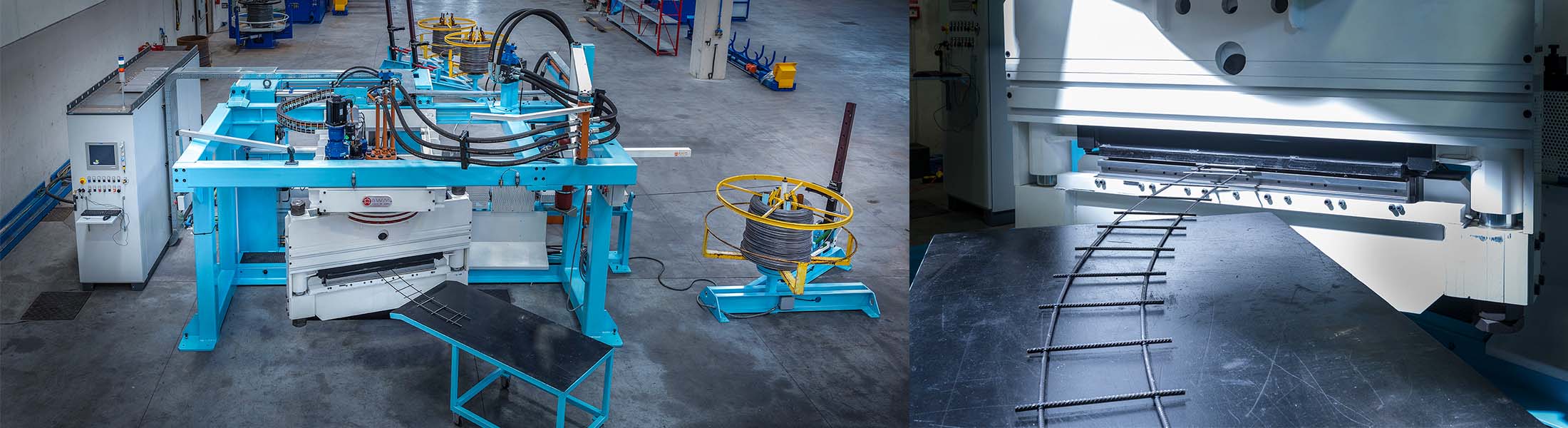

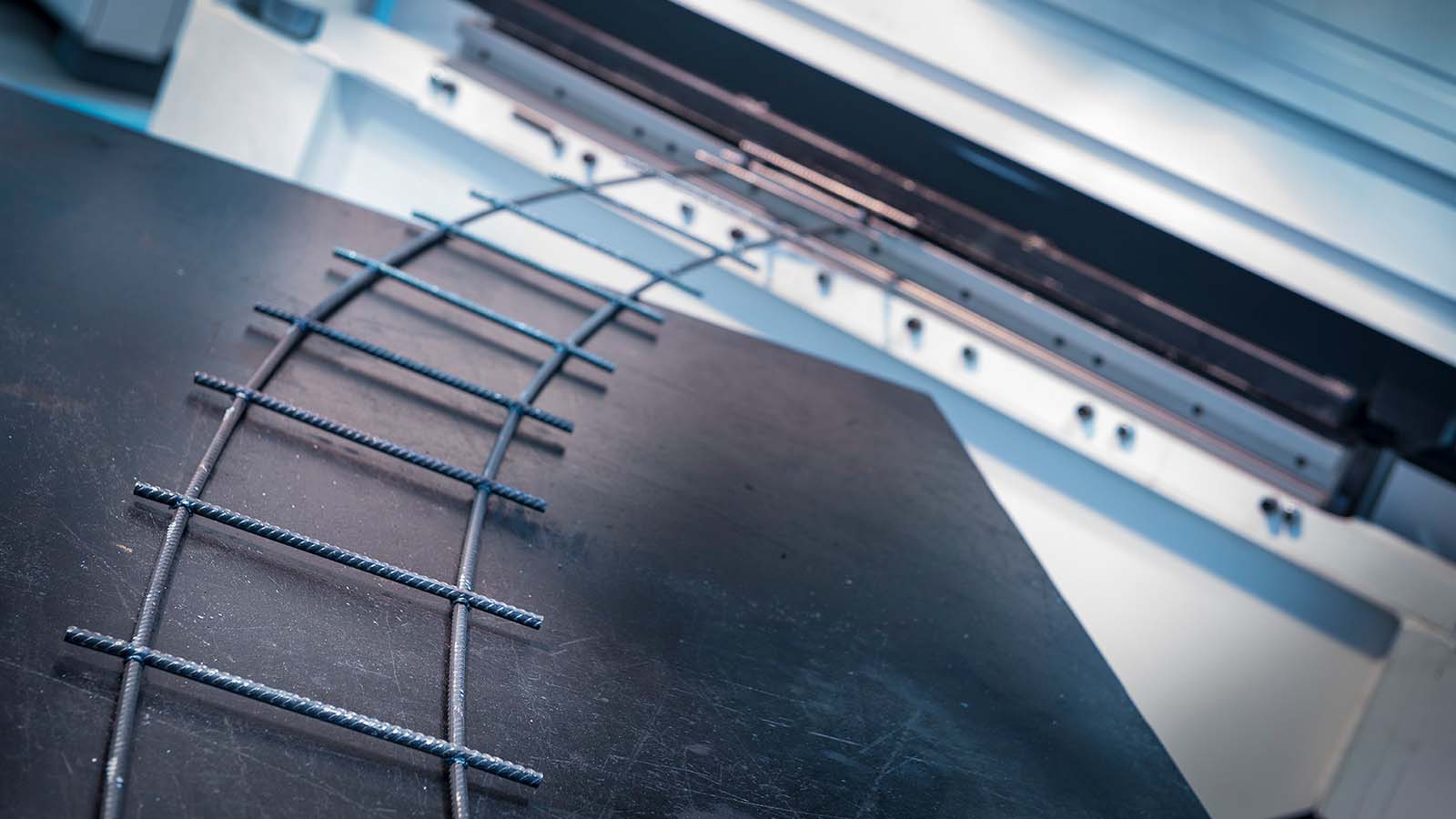

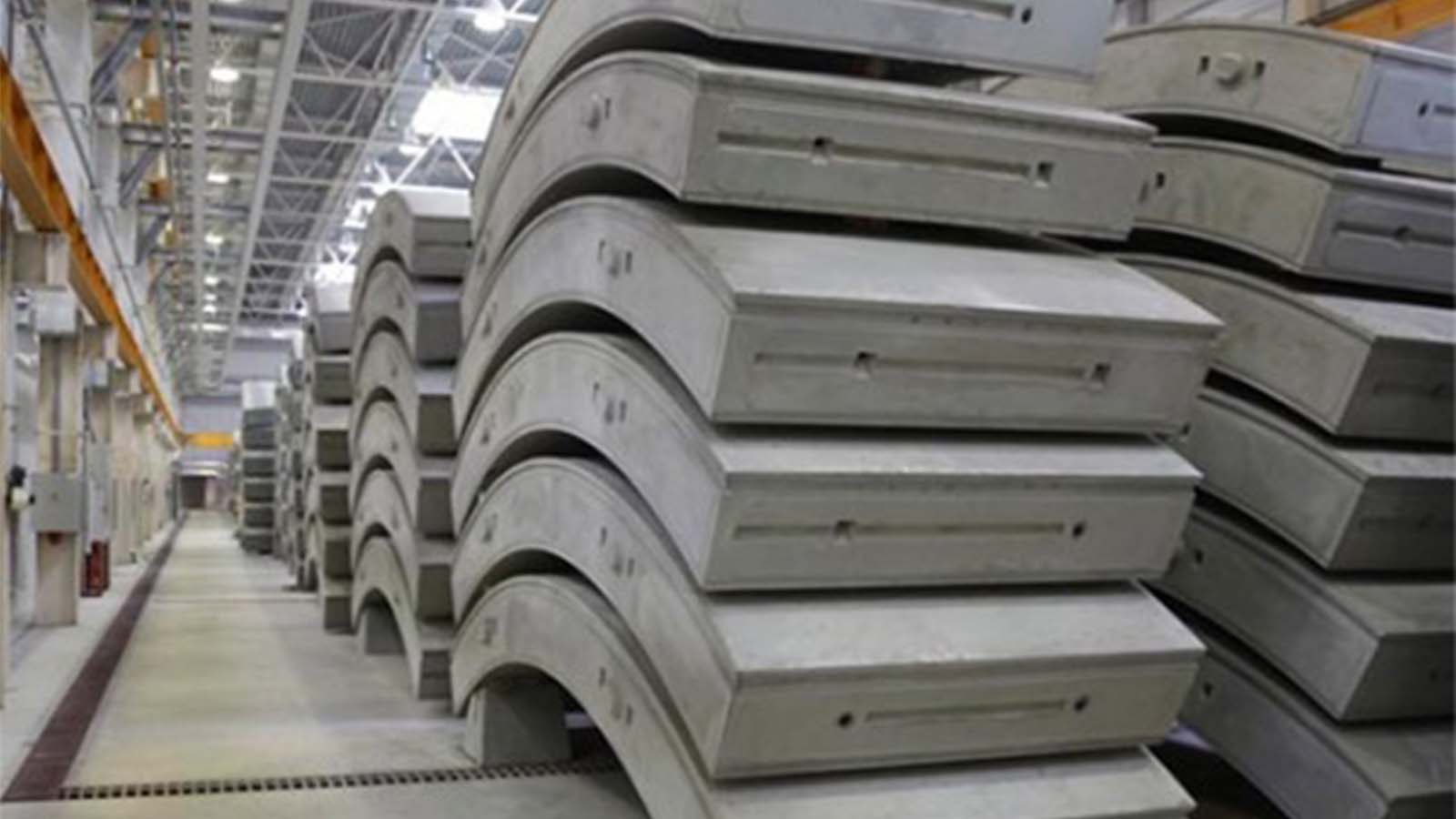

TNL is a ladder mesh welding machine for the production of curved or straight electro-welded ladders from coil, mainly used in precast tunnel segments reinforcing.
Its advanced technology guarantees perfect straight and curved ladders for precast with the lowest tolerances.

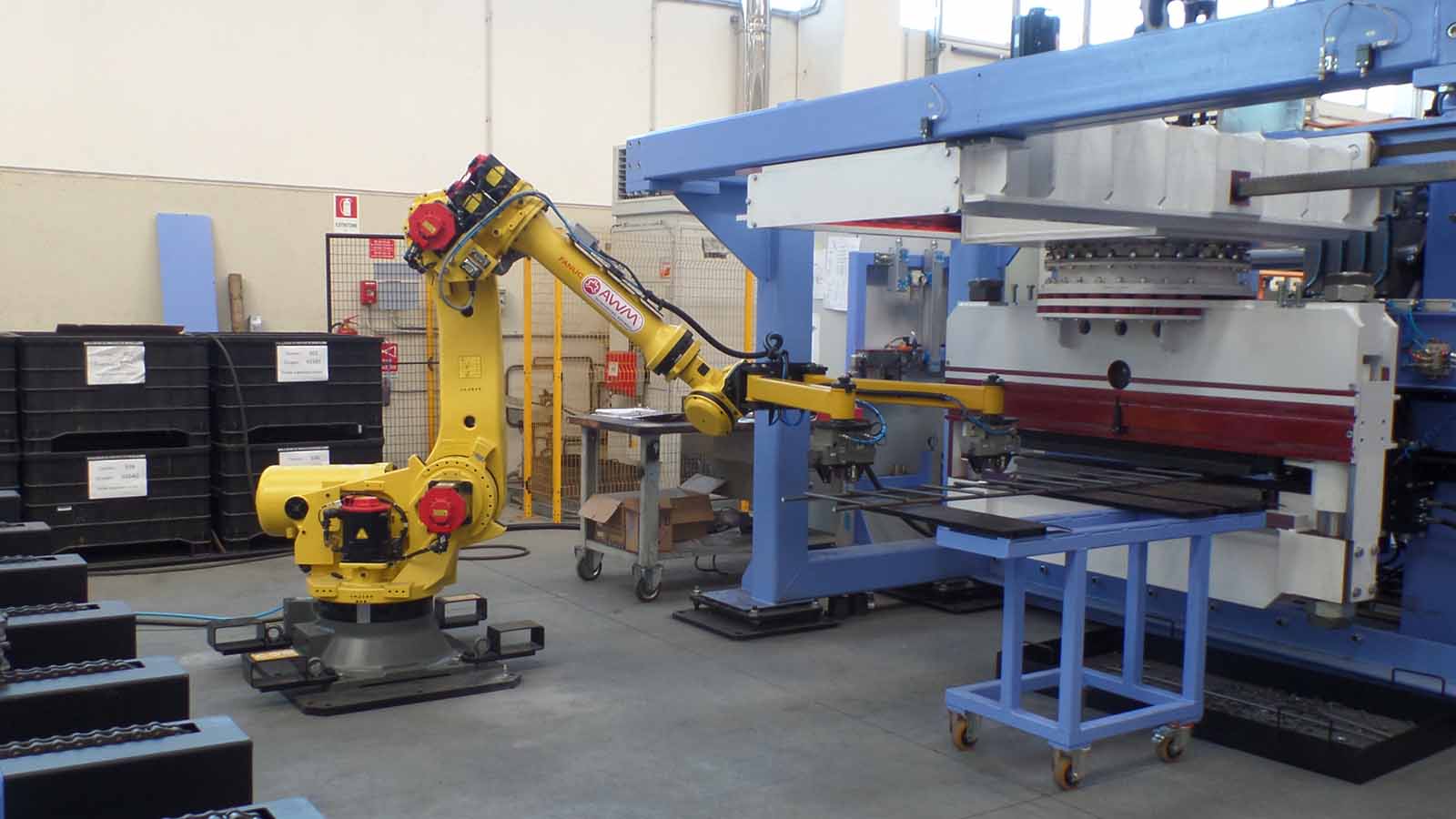

The machine comes with a shear movable on 3-axes and a programmed feeding system, which allows to have different cross wire pitches within a single electro-welded element.

In combination with the mesh welding machine, TNL is the right solution for manufacturing tunnel segments.

TECHNICAL DATA


_ MAX. NUMBER OF LINEWIRES: from 2 to 5
_ LINEWIRE DIAMETER: Ø 8 - 16 mm
_ CROSSWIRE DIAMETER: Ø 8 - 16 mm
_ MAX LENGTH OF THE CURVED OR STRAIGHT ELEMENT: 6.000 mm
_ RADIUS SPAN: from 2.000 mm to infinite (straight ladder)
_ ELEMENT WIDTH FOR CURVE LADDER: 150 – 1.000 mm
_ MAX. WIDTH FOR STRAIGHT LADDER: 1.200 mm
_ CROSS WIRE PITCHES: 70 - 300 mm, stepless adjustment
_ LONGITUDINAL WIRES PITCHES: min. 55 mm, stepless adjustment
_ RAW MATERIAL: coils of hot or cold rolled wire of weldable quality up to 5 tons, max. tensile strength 500 MPa

TNL - MACHINE CONFIGURATION

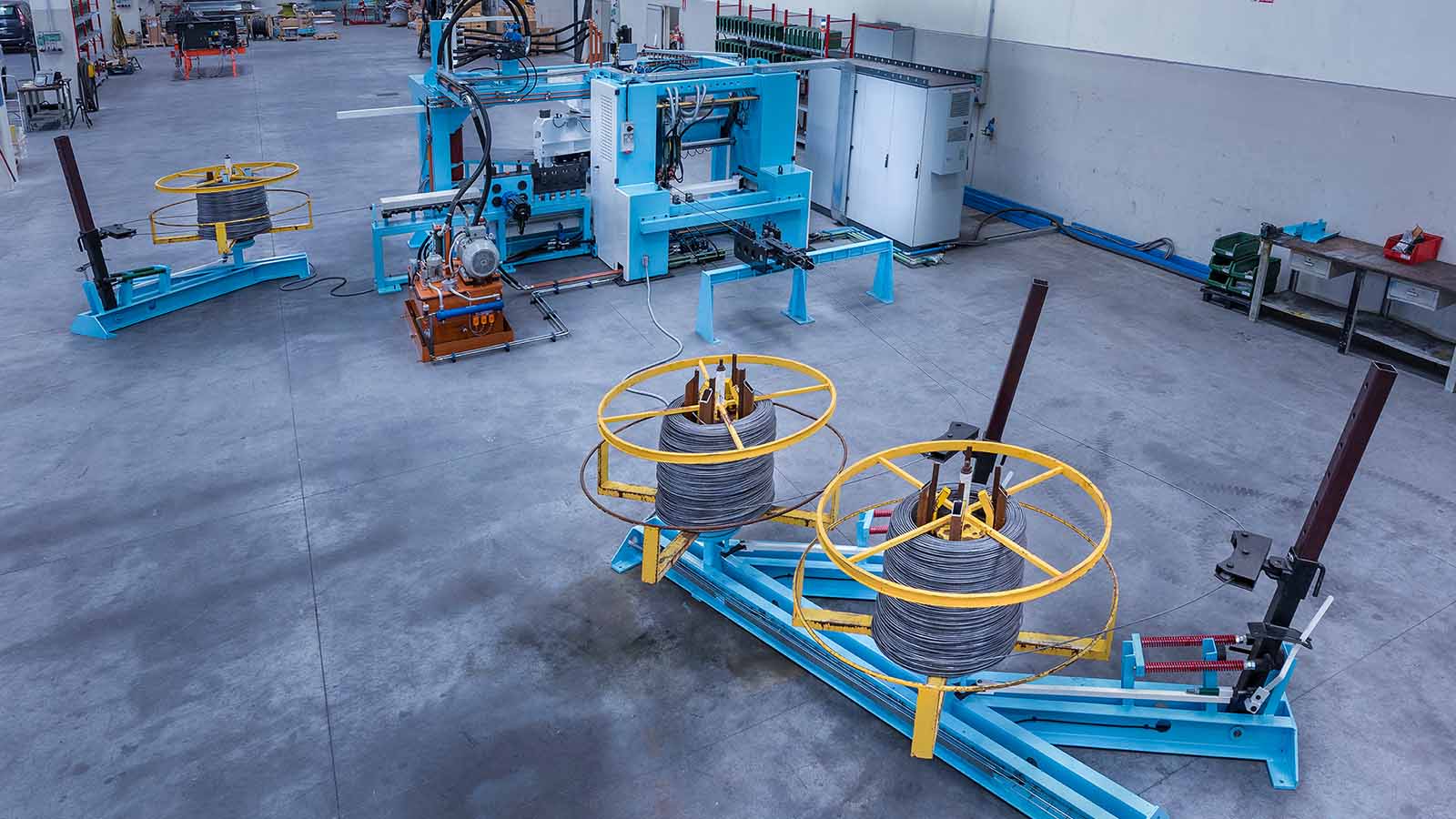

1. Linewire uncoilers
2. Straightening wire guides
3. Crosswire uncoiler

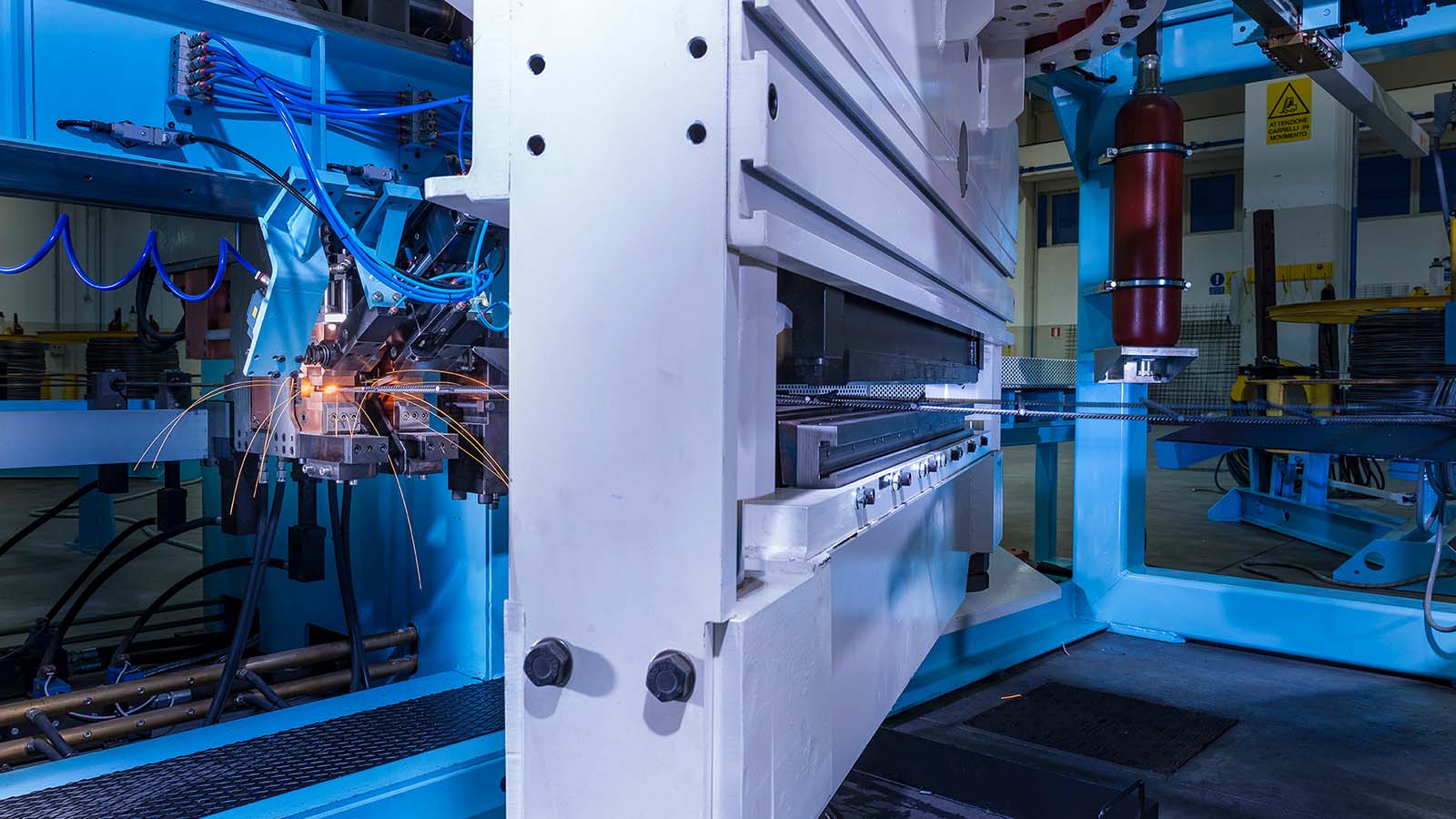

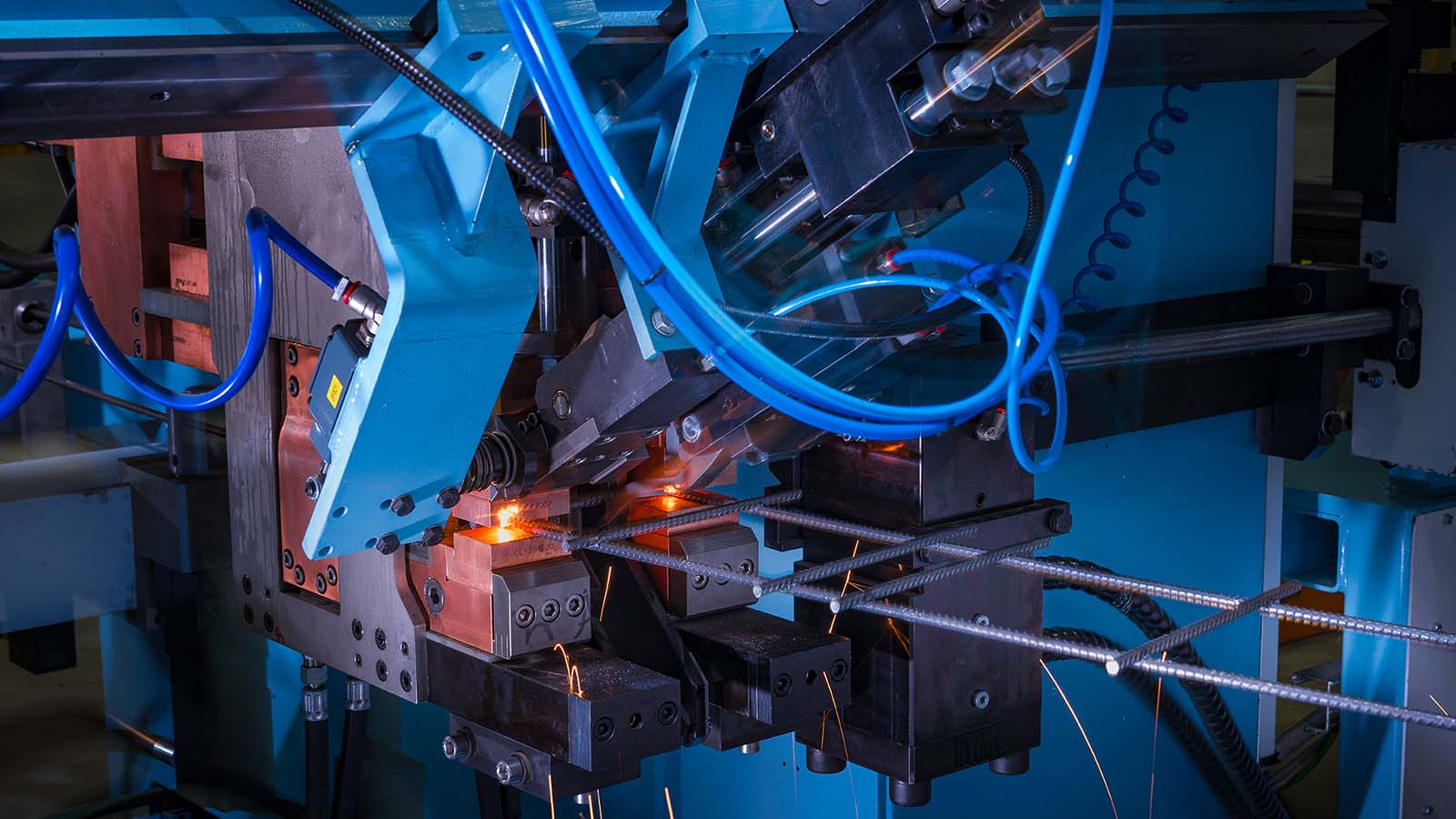

4. Welding portal
5. Shear

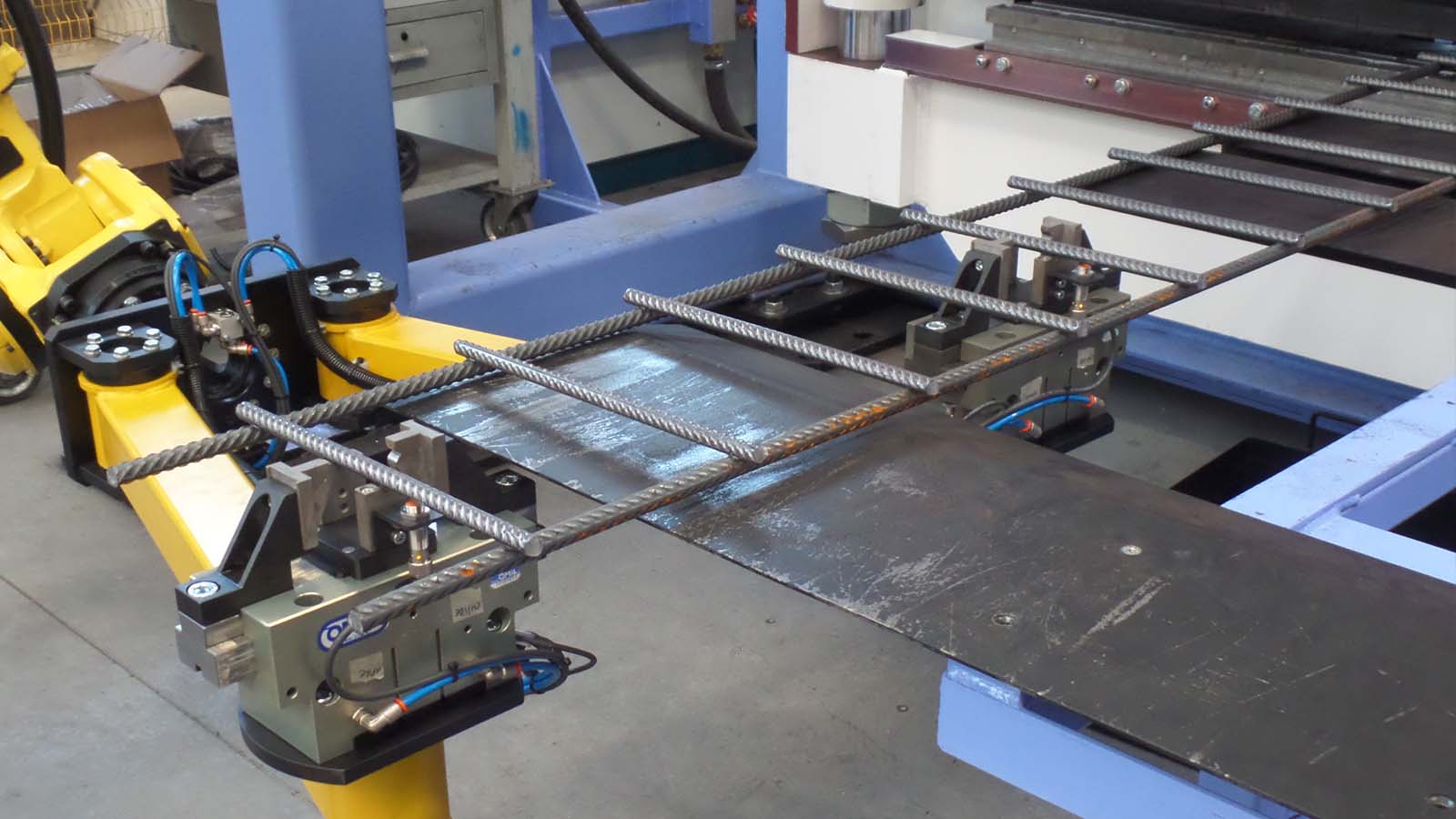

6. Extraction table
